Tufoil High Temperature Spindle Grease
Price range: $6.82 through $66.25
High Temperature Spindle Grease is an low-odor lubricant with no melting point and unlimited shelf life. It is stable in excessive heat and will not melt or run even in direct flame.
Use High Temperature Spindle Grease on:
- Appliance motors
- Dental drills
- Brake calipers
- All high speed rotating machinery
More details below.
Description
Specifications
| Cone Penetration (ASTM D17) @ 77°F | |
| Unworked | 319 |
| Worked 60 strokes | 347 |
| Worked 5,000 strokes | 345 |
| Worked 10,000 strokes | 345 |
| Worked 100,000 strokes | 350 |
| Cone Penetration (ASTM D1430) @ 77°F | |
| Unworked | 320 |
| Worked 60 strokes | 347 |
| Oil Separation (ASTM D1742) | |
| 24 hours @ 25°C and .25psi, % | 0.53 |
| Shear Stability (Extended work penetration) @ 77°F |
|
| 10,000 strokes | 285 |
| 100,000 strokes | 313 |
| Oxidation Stability (ASTM D942) Pressure drop, PSI |
|
| 100 hours | 32 |
| 400 hours | 76 |
| 4-Ball Wear Test (ASTM D2266) 40kg, 1200rpm, 167°F 1 hour – average wear scar |
|
| Diameter, mm | 0.46 |
| Average Coefficient of Friction | 0.455 |
| 4-Ball Extreme Pressure (D2596) AISI E-52100 ball 1770rpm, 10 seconds, ambient temperature |
|
| Load wear index | 43.43 |
| Weld point, kg | 400 |
| Texture: | Smooth mixture, free of foreign matter |
| Appearance: | Opaque light bluish green in color |
| Dropping Point ASTM D566, °F | 500+ |
| Water washout @ 100°F – % washout | 1.5 |
Additional information
| Weight | 0.3100 lbs |
|---|---|
| Dimensions | N/A |

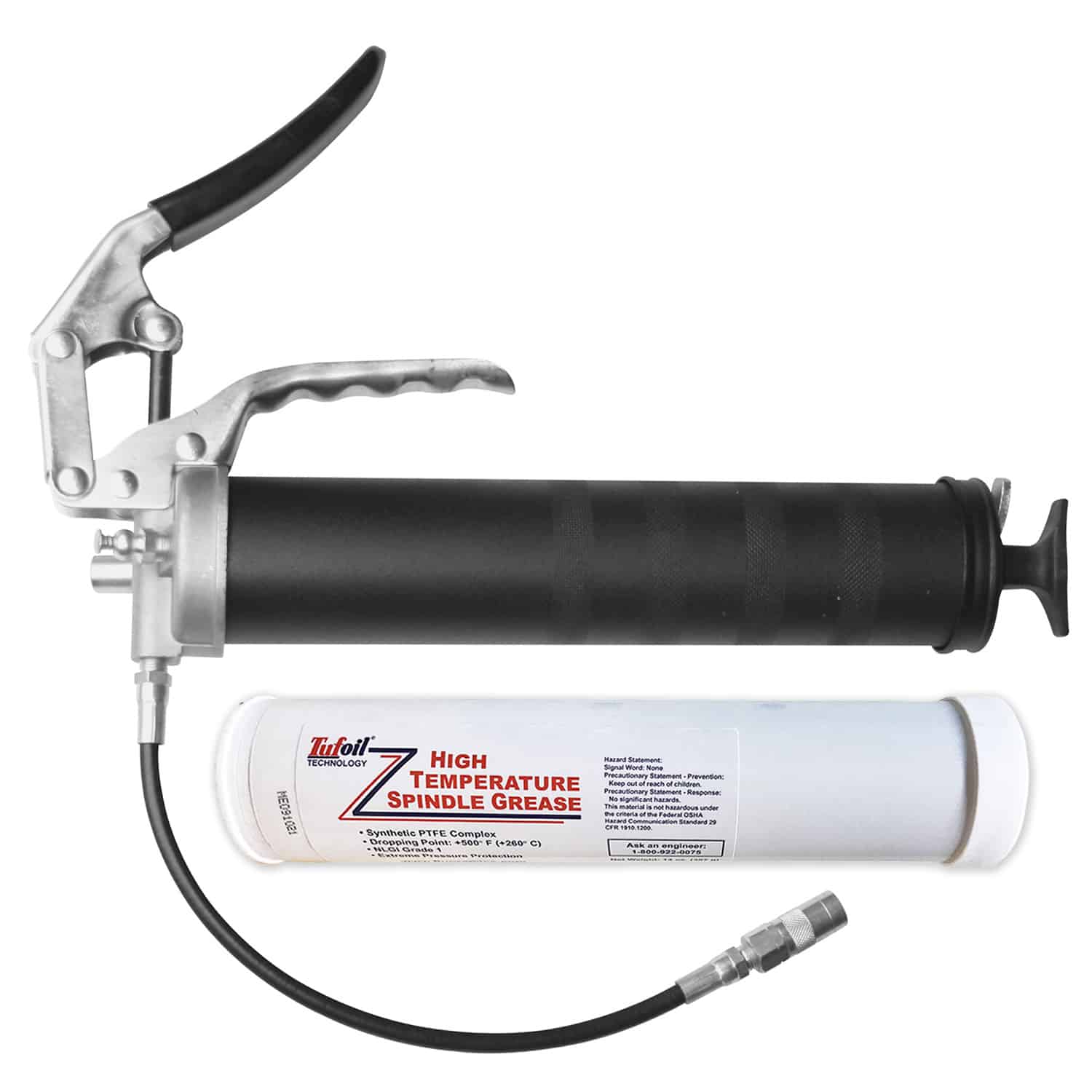

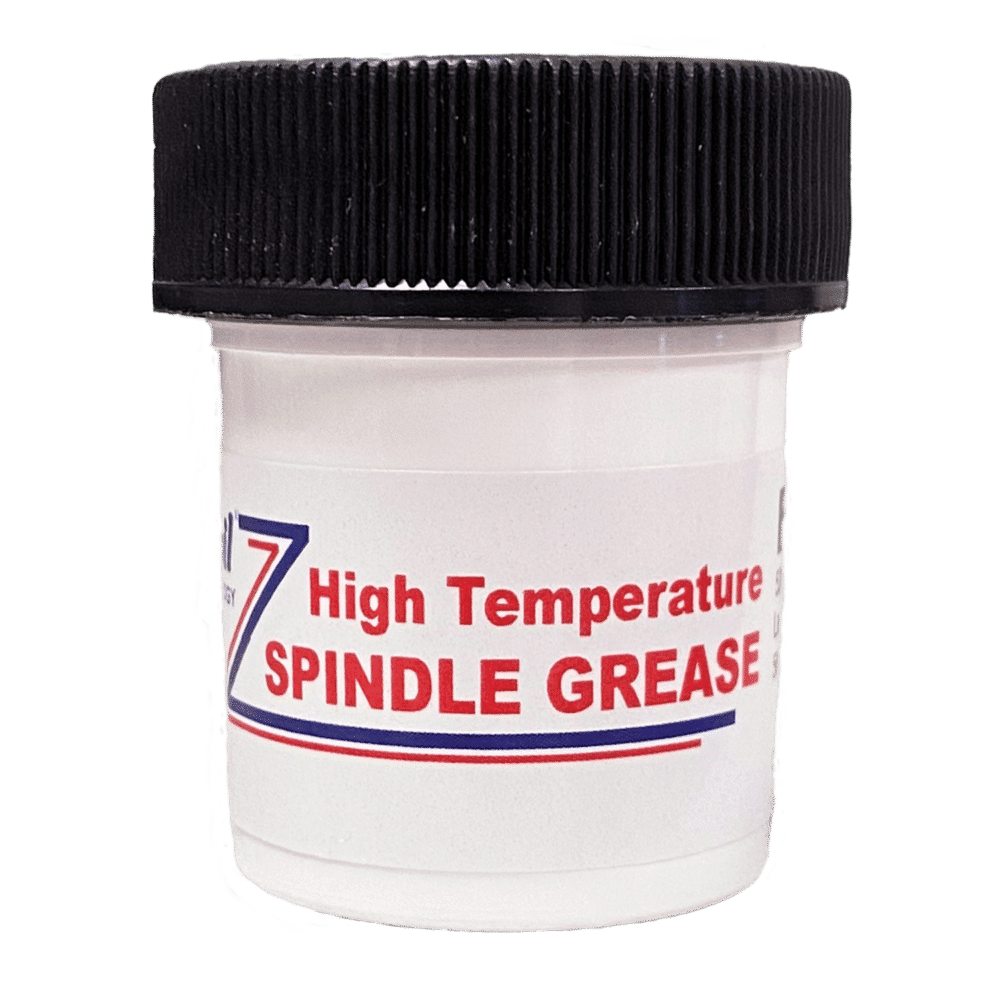

| Size | Net Wt 113 g Jar (4 oz), Net Wt 15 g Jar (.529 oz), Net Wt 226 g Jar (8 oz), Net Wt 396 g Grease Cartridge (14 oz), Net Wt 453 g Jar (1 lb) |
